Install Cytoscape

Overview

This step describes the process of installing the latest release of Cytoscape.

Prerequisites

Cytoscape is a Java application verified to run on the Linux, Windows, and Mac OS X platforms. Although not officially supported, other UNIX platforms such as Solaris or FreeBSD may run Cytoscape if Java version 7 or later is available for the platform.

The system requirements for Cytoscape depend on the size of the networks you want to load, view and manipulate.

Note that as of Cytoscape v3.2, networks are loaded faster and in less memory than with previous versions. While this is good news, networks created on v3.2 on a given memory configuration (e.g., 1GB) may not be loadable by prior Cytoscape versions on the same memory configuration.

Small Network Visualization

Large Network Analysis/Visualization

Processor

1GHz

As fast as possible, with multiple cores

Memory

512MB

2GB+

Graphics Card

Integrated video

High-end graphics Card

Monitor

XGA (1024X768)

Wide or Dual Monitor

Specific system requirements, limitations, and configuration options apply to each platform, as described in the Release Notes available on the Cytoscape website.

Process

Install Java

Cytoscape requires Java 7 or later.

For additional information, select the Release Notes button on the Cytoscape web site (http://cytoscape.org).

Install Cytoscape

Downloading and installing

There are a number of options for downloading and installing Cytoscape. See the download page at the http://cytoscape.org website for all options.

Cytoscape installations (regardless of platform) containing the following files and directories:

File/Directory

Description

p/Cytoscape_v3.2.0

Cytoscape program files, startup scripts, and default location for session files

p/Cytoscape_v3.2.0/Cytoscape.vmoptions

Cytoscape memory configuration settings

p/Cytoscape_v3.2.0/sampleData

Preset networks as described in the embedded README.txt file

p/Cytoscape_v3.2.0/framework

Cytoscape program files

u/CytoscapeConfiguration

Cytoscape properties and program cache files

u/CytoscapeConfiguration/cytoscape3.props

Cytoscape configuration settings

The p/ directory signifies the program directory, which varies from platform to platform. For Cytoscape to work properly, all files should be left in the directory in which they were unpacked. The core Cytoscape application assumes this directory structure when looking for the various libraries needed to run the application.

The u/ directory signifies the user's home directory, which varies from user to user and from platform to platform. To change the user home directory from the default, one can set the Java environment variable user.home to the desired directory -- this is useful when Cytoscape is installed on a workstation, but the home directory is stored on a central file server. user.home can be set by adding the following option to the Cytoscape.vmoptions file or the _JAVA_OPTIONS environment variable, substituting the desired path as appropriate:

Your operating system may have other mechanisms for setting environment variables -- see your operating system documentation for further details.

A note on upgrading your Cytoscape installation

If you have a previous Cytoscape installation you have two options:

  1. Starting with a clean slate. For this you should delete your previous installation directory and the CytoscapeConfiguration directory (see below for the location of this directory).

  2. Just keep what you have and simply pick a distinct, new directory for installation of the latest version. In the unlikely event that you should encounter any problem, delete the .props files in your CytoscapeConfiguration directory. If that doesn't help try deleting the CytoscapeConfiguration directory. This latter step will cause you to lose all of the apps that you have installed via the App Store, so only do that if you are having problems or if you don't mind reinstalling your apps. The core apps will not be affected by this step.


Launch the application

As with any application, launch it by double-clicking on the icon created by the installer, by running cytoscape.sh from the command line (Linux or Mac OS X) or by double-clicking cytoscape.bat or the Program Launch icon (Windows).

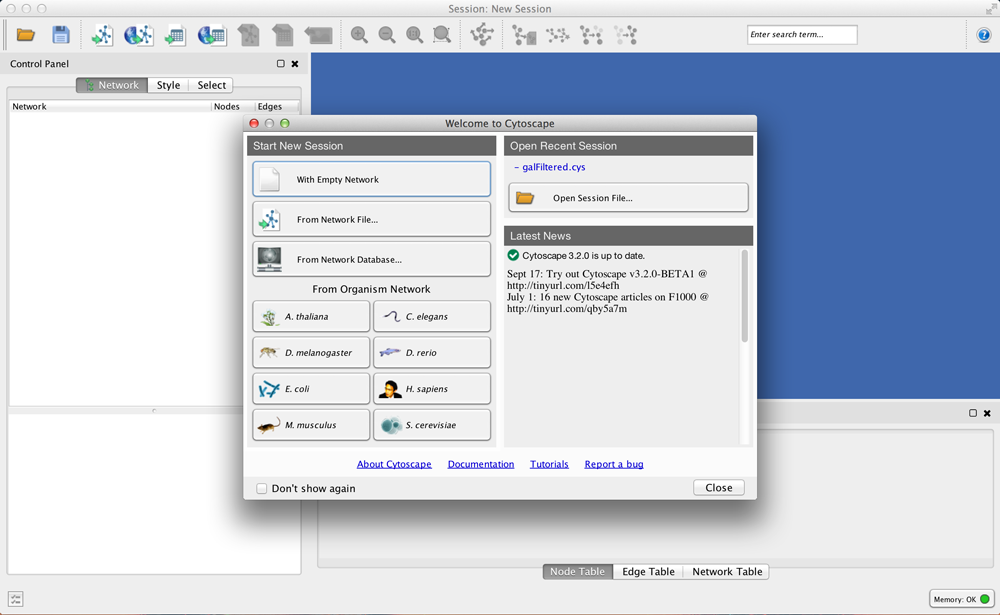

After launching Cytoscape a window will appear that looks like this:


If your Cytoscape window does not resemble this, further configuration may be required. Consult the Release Notes available on the http://cytoscape.org website.


Note on Memory Consumption

For most regular users, Cytoscape will estimate and reserve the proper amount of memory. An incorrect estimate may result in Cytoscape hanging at startup or Cytoscape being unable to load your network. Unless Cytoscape fails to start or open your network, it has likely estimated the available memory correctly. If Cytoscape misjudges the memory size or can't allocate enough memory, it could be that you're running with a 32 bit JRE and could get better results by installing a 64 bit JRE -- see the above.

When Cytoscape starts, it displays the current memory usage in the lower right corner of the main interface. You can click on the Memory button at any time to access an option to Free Unused Memory. While most users won't need to use this option, it can be useful for users who have multiple large networks loaded.

Overall Memory Size for Cytoscape

By default, Cytoscape uses an estimate for initial and maximum memory allocation based on your operating system, system architecture (32 or 64 bit), and installed memory. You can change Cytoscape's initial and/or maximum memory size by editing the Cytoscape.vmoptions file, which resides in the same directory as the Cytoscape executable. The file contains one option per line, with each line terminated by a linefeed, and an extra linefeed at the end of the file. Note that for the MacOS platform, the situation is slightly different -- if you are launching Cytoscape by clicking on the Cytoscape icon, you must edit the .../Cytoscape.app/Contents/Info.plist file instead.

For example, if you want Cytoscape to initially allocate 2GB of memory and use up to a maximum of 4GB, edit the Cytoscape.vmoptions file to contain the following lines (... do not forget the linefeed at the end of each line, and an extra linefeed at the end of the file!):

Stack Size

There is one more option related to memory allocation. Some of the functions in Cytoscape use larger stack space (a temporary memory for some operations, such as Layout). Since this value is set independently from the values above, sometimes layout algorithms fail due to an out of memory error. To avoid this, you can set larger heap size for Cytoscape tasks by using the taskStackSize option in the cytoscape3.props file (located in the CytoscapeConfiguration directory). This can be edited within Cytoscape using the Preferences Editor (Edit-Preferences-Properties...) - look for taskStackSize. The value should be specified in bytes.
